SMD-400 Eropean Standards High Efficiency Customizable Spray Booths Optimized for Automobile and Room Spray Paint

7000L*5200W*3370H

6900L*3900W*2650H

3000W*2600H

8.5Kw

30Kw

380V/50hz

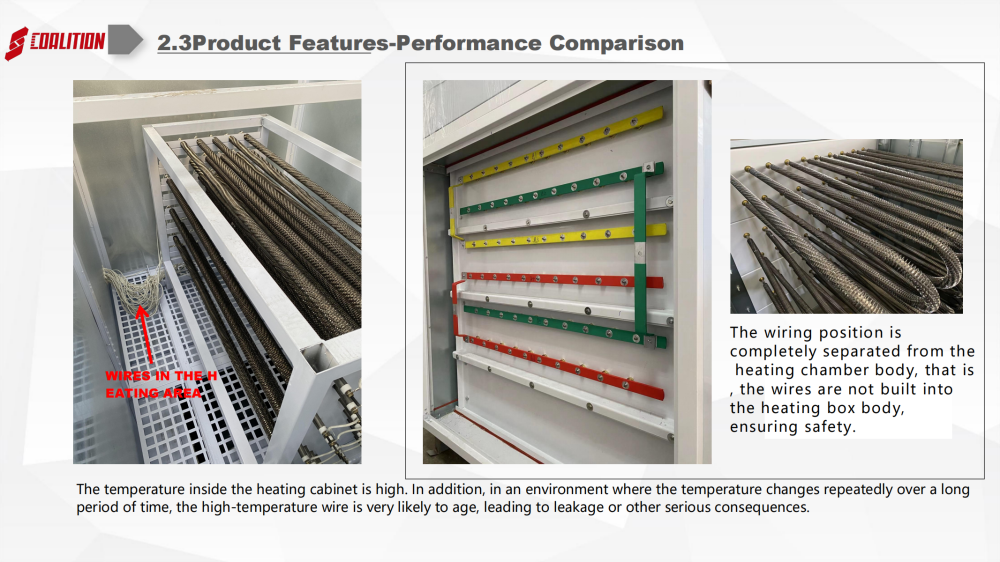

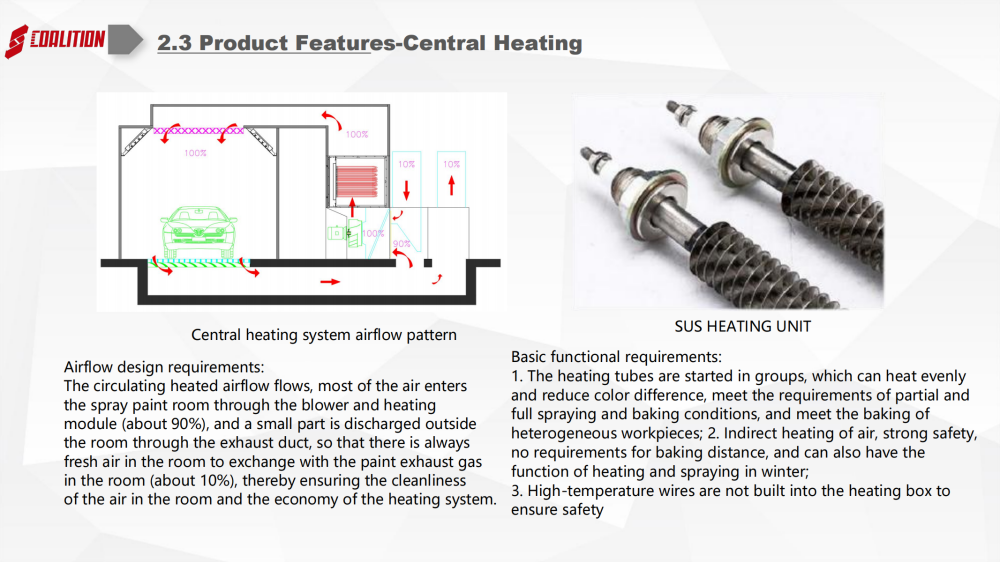

Heating ways

By infrared lamp,with 10 groups,each groups with 3pcs1.0kw lamp,totally:30kw

Wall material

50mm EPS board,steel thickness:0.376mm,Socket type assembling.

Roof board

With 0.7mm zinc plated steel sheet,single layer.

Basement

All around with welded 1.2mm zinc plated steel sheet,Bearing bracket with welded 40×80×1.5 zinc plated tube,which can be antiseptic and durable.The ground grid is full of hot dip galvanized steel.Two rows of grid and three rows of diamond plate.

Sloping panel

Two pcs 630mm width slope

Lighting

With LED lamps,de energy saving and longer lifetime,With 45 degree installation at inner side of roof,8 groups at roof,each group:3×16w

Inlet system

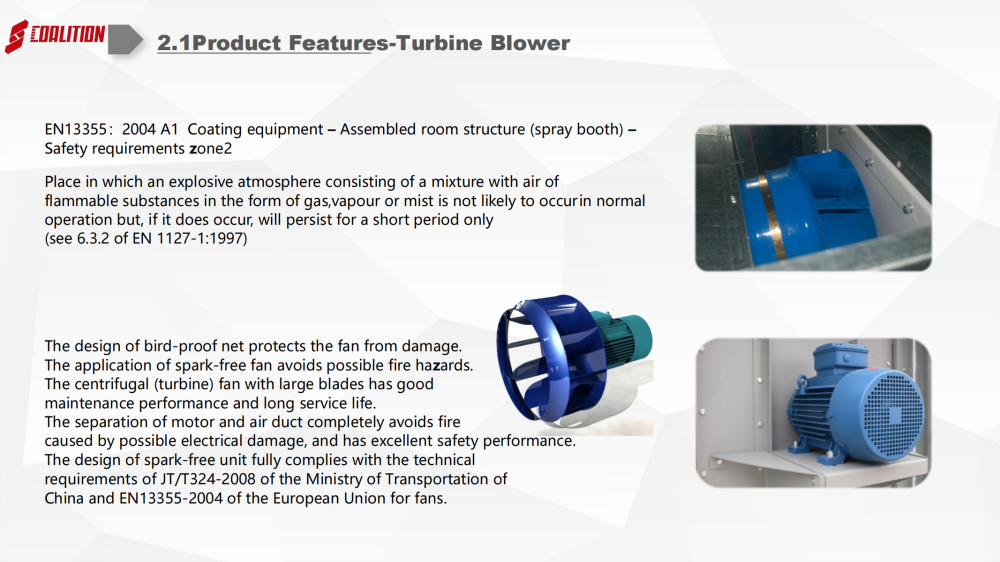

With two pcs centrifugal blower,power 4kw,With SIEMENS air conditioner motor technology,direct drive,Air volume：24000m³/h，Rated air speed：0.3m/s；air changes：260times/h;zinc plated tube frame ,outer be sealed by single board.

Exhaust system

No motor in cabinet,zinc plated tube frame,outer be sealed by single board

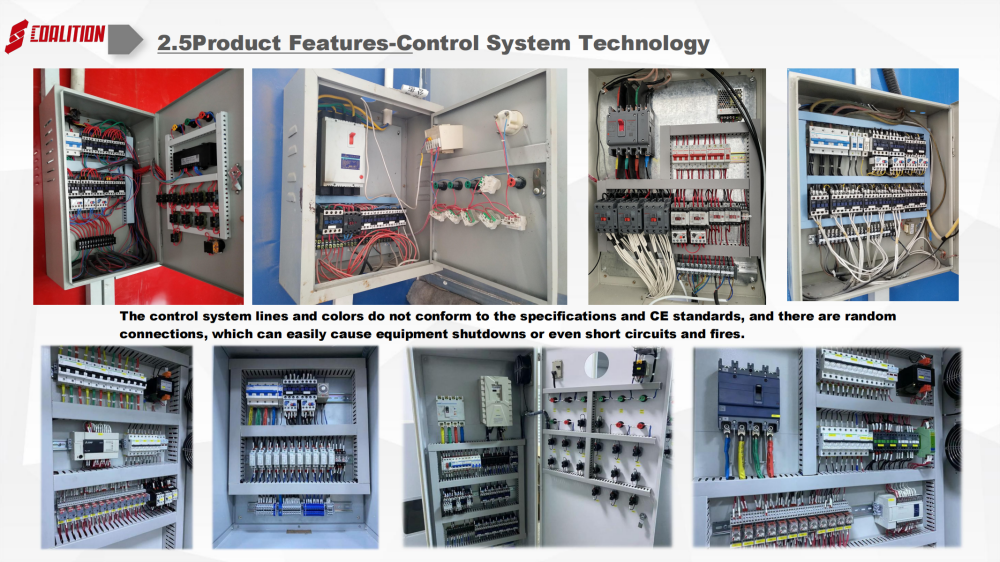

Control system

With lighting switch,painting switch,warm painting,baking temperature,time setting,urgent stop switch,All components with famous domestic brand.

Air purification

Inlet with high grade fiberglass filter,which filtered the dust larger than 10um ,roof with EU5 cc-600G filter.TPS value：≤1.4mg/m3.

Discharged air treatment

No

Ducts standard features

3 straight tube,1 elbow tube.

Available colors

Blue,Orange,red grey white
