S-98 Stainless Steel Door Paint Booth Room

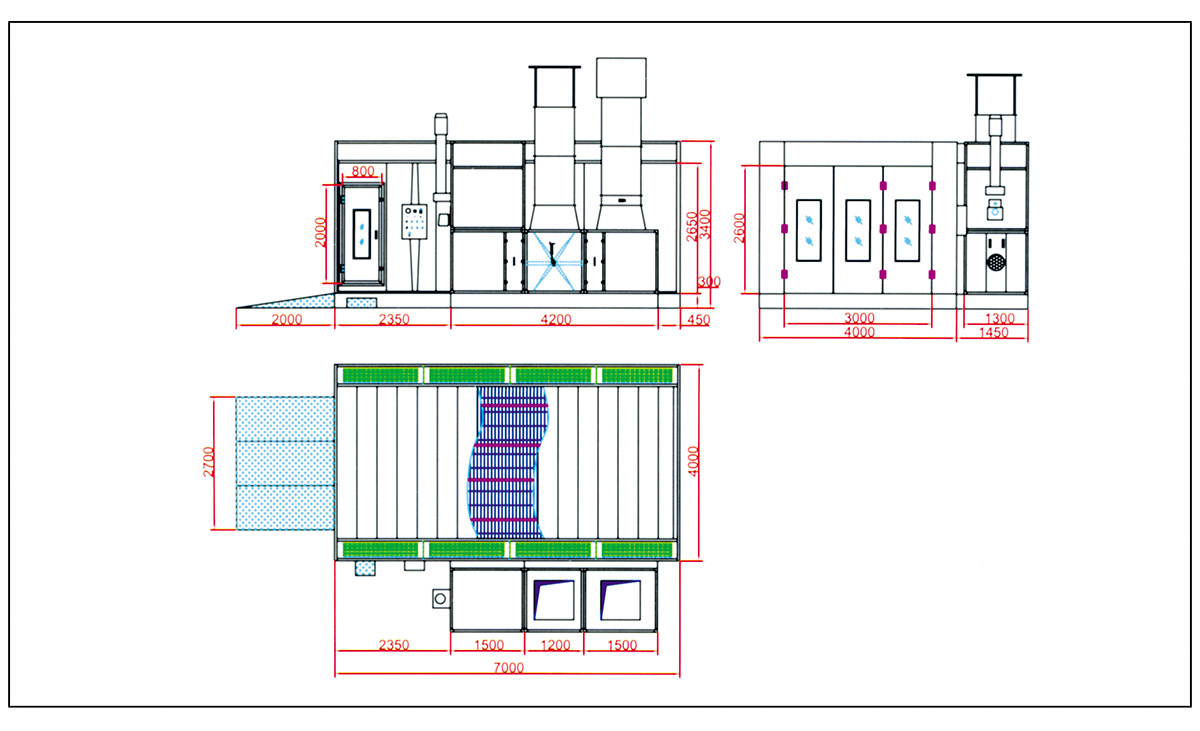

Outer dimension | Inner dimension | Door dimension | Painting power | Baking total power | Voltage/Frequency |
7000L*5200W*3370H | 6900L*3900W*2650H | 3000W*2600H | 8.5Kw | 30Kw | 380V/50hz |
Heating ways | By infrared lamp,with 10 groups,each groups with 3pcs1.0kw lamp,totally:30kw | ||||
Wall material | Flame retardant 50mmEPS composite steel thickness of double 0.376mm,added to the two sides of the keel,improve the antipressure strength. | ||||
Front&Emergency door | 4 manual stainless steel door.Frames using 1.2mm stainless steel titanium black metal material processing and using aluminum alloy hinge,both to ensure strength and beautiful atmosphere,observation window adopts the double-layer hollow 8mm thick tempered glass;work with special 2mm thick aluminum alloy hemming,to ensure both sealing and no deformation. | ||||
Roof board | With 0.8mm zinc plated steel sheet,single layer. | ||||
Basement | All around with welded 1.2mm zinc plated steel sheet,Bearing bracket with welded 40*80*1.5zinc plated tube,which can be antiseptic and durable.The ground grid is full of hot dip galvanized steel.Two rows of grid and three rows of diamond plate.Two pcs 630mm width slope. | ||||
Lighting system | 3×16W:With LED lamps,be energy saving and longer lifetime,8 groups at roof,each group:3×16W. | ||||
Inlet system
| With two pcs centrifugal blower,power 4kw,With SIEMENS air conditioner motor technology,direct drive,Air volume：24000m3/h，Rated air speed：0.38m/s；air changes：260times/h;zinc plated tube frame ,outer be sealed by single board. | ||||
Exhaust system | No motor in cabinet,zinc plated tube frame,outer be sealed by single board | ||||

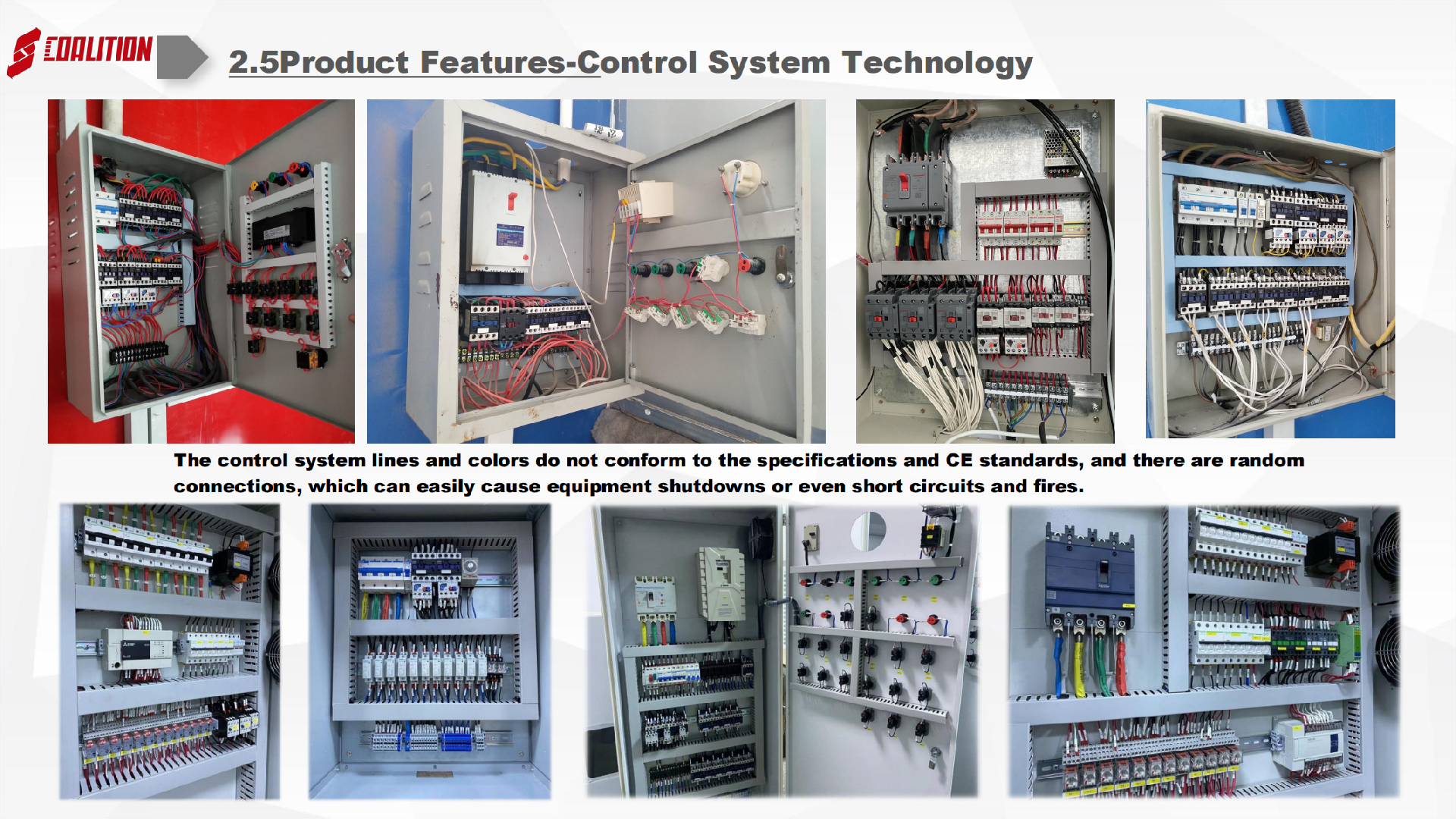

Control system | With lighting switch,painting switch,warm painting,baking temperature,time setting,urgent stop switch,All components with famous domestic brand. | ||||
Air purification | Inlet with high grade fiberglass filter,which filtered the dust larger than 10um ,roof with EU5 cc-600G filter.TPS value：≤1.4mg/m3. | ||||
Discharged air treatment | No motor in cabiner,zinc plated tube frame.,outer be sealed by single board. | ||||
Ducts standard features | 3节3straight tube，1 elbow tube. | ||||
Available colors | Blue,Orange,red grey white | ||||
